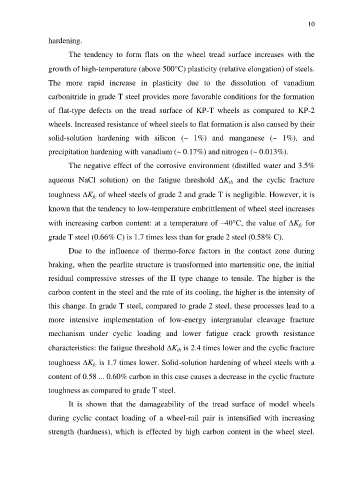

Page 10 - Кулик В.В.
        P. 10
     10
                  hardening.
                         The  tendency  to  form  flats  on  the  wheel  tread  surface  increases  with  the
                  growth of high-temperature (above 500C) plasticity (relative elongation) of steels.
                  The  more  rapid  increase  in  plasticity  due  to  the  dissolution  of  vanadium
                  carbonitride in grade T steel provides more favorable conditions for the formation
                  of  flat-type  defects  on  the  tread  surface  of  KP-T  wheels  as  compared  to  KP-2
                  wheels. Increased resistance of wheel steels to flat formation is also caused by their
                  solid-solution  hardening  with  silicon  (~  1%)  and  manganese  (~  1%),  and
                  precipitation hardening with vanadium (~ 0.17%) and nitrogen (~ 0.013%).
                         The negative effect of the corrosive environment (distilled water and 3.5%
                  aqueous  NaCl  solution)  on  the  fatigue  threshold  K   and  the  cyclic  fracture
                                                                                 th
                  toughness K  of wheel steels of grade 2 and grade T is negligible. However, it is
                                  fc
                  known that the tendency to low-temperature embrittlement of wheel steel increases
                  with increasing carbon content: at a temperature of –40°C, the value of K  for
                                                                                                          fc
                  grade T steel (0.66% C) is 1.7 times less than for grade 2 steel (0.58% C).
                         Due  to  the  influence  of  thermo-force  factors  in  the  contact  zone  during
                  braking, when the pearlite structure is transformed into martensitic one, the initial
                  residual  compressive  stresses  of  the  II  type  change  to  tensile.  The  higher  is  the
                  carbon content in the steel and the rate of its cooling, the higher is the intensity of
                  this change. In grade T steel, compared to grade 2 steel, these processes lead to a
                  more  intensive  implementation  of  low-energy  intergranular  cleavage  fracture
                  mechanism  under  cyclic  loading  and  lower  fatigue  crack  growth  resistance
                  characteristics: the fatigue threshold K  is 2.4 times lower and the cyclic fracture
                                                               th
                  toughness K  is 1.7 times lower. Solid-solution hardening of wheel steels with a
                                  fc
                  content of 0.58 ... 0.60% carbon in this case causes a decrease in the cyclic fracture
                  toughness as compared to grade T steel.
                         It  is  shown  that  the  damageability  of  the  tread  surface  of  model  wheels
                  during  cyclic  contact  loading  of  a  wheel-rail  pair  is  intensified  with  increasing
                  strength (hardness), which is effected by high carbon content in the wheel steel.
