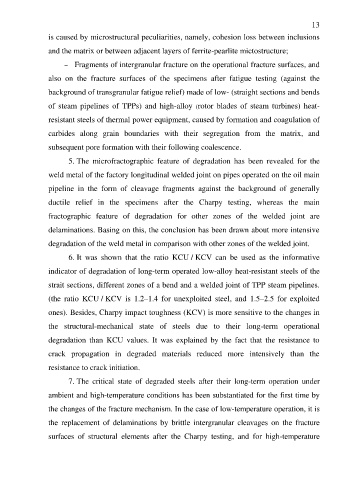

Page 13 - ЛІТЕРАТУРНИЙ ОГЛЯД
P. 13
13
is caused by microstructural peculiarities, namely, cohesion loss between inclusions
and the matrix or between adjacent layers of ferrite-pearlite mictostructure;
Fragments of intergranular fracture on the operational fracture surfaces, and
also on the fracture surfaces of the specimens after fatigue testing (against the
background of transgranular fatigue relief) made of low- (straight sections and bends
of steam pipelines of TPPs) and high-alloy (rotor blades of steam turbines) heat-
resistant steels of thermal power equipment, caused by formation and coagulation of
carbides along grain boundaries with their segregation from the matrix, and
subsequent pore formation with their following coalescence.
5. The microfractographic feature of degradation has been revealed for the
weld metal of the factory longitudinal welded joint on pipes operated on the oil main
pipeline in the form of cleavage fragments against the background of generally
ductile relief in the specimens after the Charpy testing, whereas the main
fractographic feature of degradation for other zones of the welded joint are
delaminations. Basing on this, the conclusion has been drawn about more intensive
degradation of the weld metal in comparison with other zones of the welded joint.
6. It was shown that the ratio KCU / KCV can be used as the informative
indicator of degradation of long-term operated low-alloy heat-resistant steels of the
strait sections, different zones of a bend and a welded joint of TPP steam pipelines.
(the ratio KCU / KCV is 1.2–1.4 for unexploited steel, and 1.5–2.5 for exploited
ones). Besides, Charpy impact toughness (KCV) is more sensitive to the changes in
the structural-mechanical state of steels due to their long-term operational
degradation than KCU values. It was explained by the fact that the resistance to
crack propagation in degraded materials reduced more intensively than the
resistance to crack initiation.
7. The critical state of degraded steels after their long-term operation under
ambient and high-temperature conditions has been substantiated for the first time by
the changes of the fracture mechanism. In the case of low-temperature operation, it is
the replacement of delaminations by brittle intergranular cleavages on the fracture
surfaces of structural elements after the Charpy testing, and for high-temperature
