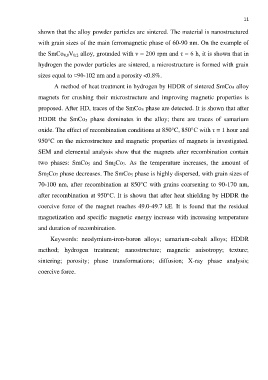

Page 11 - Дисертація_Борух
P. 11
11
shown that the alloy powder particles are sintered. The material is nanostructured
with grain sizes of the main ferromagnetic phase of 60-90 nm. On the example of
the SmCo 4,8V 0,2 alloy, grounded with ν = 200 rpm and τ = 6 h, it is shown that in
hydrogen the powder particles are sintered, a microstructure is formed with grain
sizes equal to ≈90-102 nm and a porosity <0.8%.
A method of heat treatment in hydrogen by HDDR of sintered SmCo 5 alloy
magnets for crushing their microstructure and improving magnetic properties is
proposed. After HD, traces of the SmCo 5 phase are detected. It is shown that after
HDDR the SmCo 5 phase dominates in the alloy; there are traces of samarium
oxide. The effect of recombination conditions at 850°C, 850°C with τ = 1 hour and
950°C on the microstructure and magnetic properties of magnets is investigated.
SEM and elemental analysis show that the magnets after recombination contain
two phases: SmCo 5 and Sm 2Co 7. As the temperature increases, the amount of
Sm 2Co 7 phase decreases. The SmCo 5 phase is highly dispersed, with grain sizes of
70-100 nm, after recombination at 850°C with grains coarsening to 90-170 nm,
after recombination at 950°C. It is shown that after heat shielding by HDDR the
coercive force of the magnet reaches 49.0-49.7 kE. It is found that the residual
magnetization and specific magnetic energy increase with increasing temperature
and duration of recombination.
Keywords: neodymium-iron-boron alloys; samarium-cobalt alloys; HDDR
method; hydrogen treatment; nanostructure; magnetic anisotropy; texture;
sintering; porosity; phase transformations; diffusion; X-ray phase analysis;
coercive force.
