Page 41 - Microsoft Word - avtoref_Винар_друк
P. 41

39

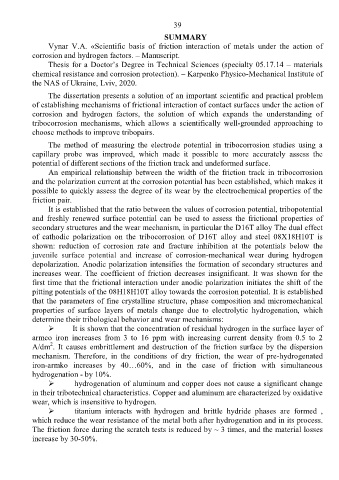

                                                           SUMMARY
                  Vynar  V.А.  «Scientific  basis  of  friction  interaction  of  metals  under  the  action  of
            corrosion and hydrogen factors. – Manuscript.
                  Thesis for a Doctor’s Degree in Technical Sciences (specialty 05.17.14 – materials
            chemical resistance and corrosion protection). – Karpenko Physico-Mechanical Institute of
            the NAS of Ukraine, Lviv, 2020.
                  The dissertation presents a solution of an important scientific and practical problem
            of establishing mechanisms of frictional interaction of contact surfaces under the action of
            corrosion  and  hydrogen  factors,  the  solution  of  which  expands  the  understanding  of
            tribocorrosion  mechanisms,  which  allows  a  scientifically  well-grounded  approaching  to
            choose methods to improve tribopairs.

                  The  method  of  measuring  the  electrode  potential  in  tribocorrosion  studies  using  a
            capillary  probe  was  improved,  which  made  it  possible  to  more  accurately  assess  the
            potential of different sections of the friction track and undeformed surface.
                  An empirical  relationship  between the width of the  friction track  in tribocorrosion
            and the polarization current at the corrosion potential has been established, which makes it
            possible to quickly assess the degree of its wear by the electrochemical properties of the
            friction pair.
                  It is established that the ratio between the values of corrosion potential, tribopotential
            and  freshly  renewed  surface  potential  can  be  used  to  assess  the  frictional  properties  of
            secondary structures and the wear mechanism, in particular the D16T alloy The dual effect
            of  cathodic  polarization  on  the  tribocorrosion  of  D16T  alloy  and  steel  08Х18Н10Т  is
            shown:  reduction  of  corrosion  rate  and  fracture  inhibition  at  the  potentials  below  the
            juvenile  surface  potential  and  increase  of  corrosion-mechanical  wear  during  hydrogen
            depolarization. Anodic polarization intensifies the formation of secondary structures and
            increases wear. The coefficient of  friction decreases insignificant. It was shown  for the
            first time that the frictional interaction under anodic polarization initiates the shift of the
            pitting potentials of the 08H18H10T alloy towards the corrosion potential. It is established
            that the parameters of fine crystalline structure, phase composition and micromechanical
            properties  of  surface  layers  of  metals  change  due  to  electrolytic  hydrogenation,  which
            determine their tribological behavior and wear mechanisms:
                         It is shown that the concentration of residual hydrogen in the surface layer of
            armco  iron  increases  from  3  to  16  ppm  with  increasing  current  density  from  0.5  to  2
                   2
            A/dm . It causes embrittlement and destruction of the  friction surface by the dispersion
            mechanism.  Therefore,  in  the  conditions  of  dry  friction,  the  wear  of  pre-hydrogenated
            iron-armko  increases  by  40…60%,  and  in  the  case  of  friction  with  simultaneous
            hydrogenation - by 10%.
                          hydrogenation of aluminum and copper does not cause a significant change

            in their tribotechnical characteristics. Copper and aluminum are characterized by oxidative
            wear, which is insensitive to hydrogen.
                          titanium  interacts  with  hydrogen  and  brittle  hydride  phases  are  formed  ,

            which reduce the wear resistance of the metal both after hydrogenation and in its process.
            The friction force during the scratch tests is reduced by ~ 3 times, and the material losses
            increase by 30-50%.
   36   37   38   39   40   41   42
